10000 Watts 4 Channel Class D Smart Amplifier D10K-4S

Features:

• 4-channel amplification: Drive 2, 4 and 8 Ohm audio systems with impressive up to 10,000 watts of total power, ensuring clear, dynamic sound even in demanding environments:

• • 8Ω Stereo Power 4 × 1350 Watts
  • 4Ω Stereo Power 4 × 2200 Watts
  • 2Ω Stereo Power 4 × 2500 Watts
  • 8Ω Bridge Mono Power 2 × 4400 Watts
  • 4Ω Bridge Mono Power 2 × 5000 Watts

• Built-in DSP: Fine-tune your sound with a powerful suite of features:

• • Mute System: individual input channel and output channel muting system (8 Mute points)
  • Polarity: Invert the signal phase of a channel, allowing you to correct phase mismatch between signals for improved soundstage and bass response.
  • Gain: Adjust the input level of each channel independently, ensuring proper signal strength and preventing clipping.
  • Crossover filters (Xover):Separate frequency ranges for each channel (Butterworth, Bessel, Linkwitz-Riley).
  • 16 Parametric EQ filters per channel:Eliminate unwanted frequencies and sculpt your sound.
  • Limiter: Set a maximum output level for each channel, preventing speaker damage from signal peaks while maintaining dynamics and clarity.

Beyond these core functions, these amps also offer:

• 20 Local User presets: Store up to 20 custom configurations in the internal memory for instant recall.
• Upload from PC and Download to PC unlimited parameters.

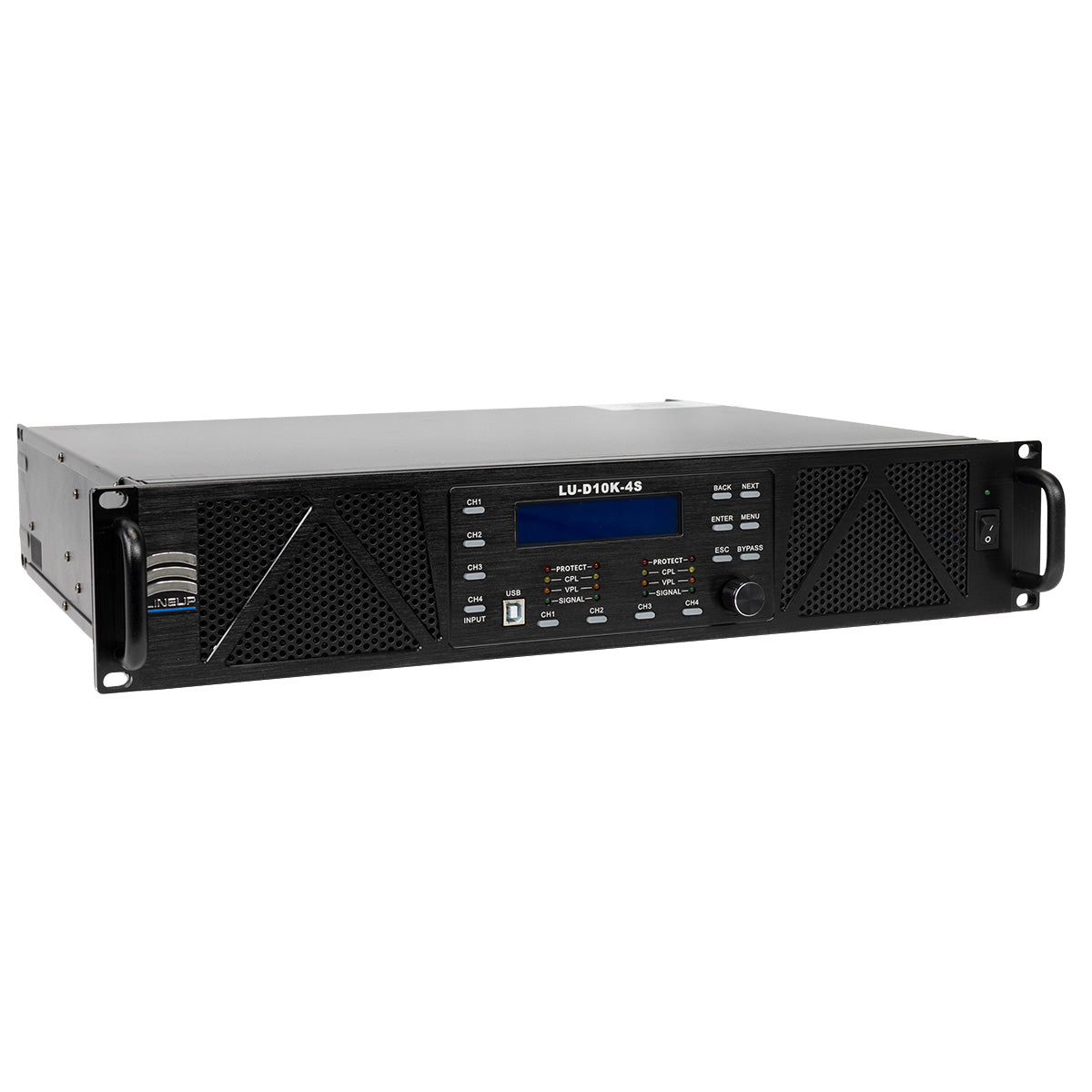

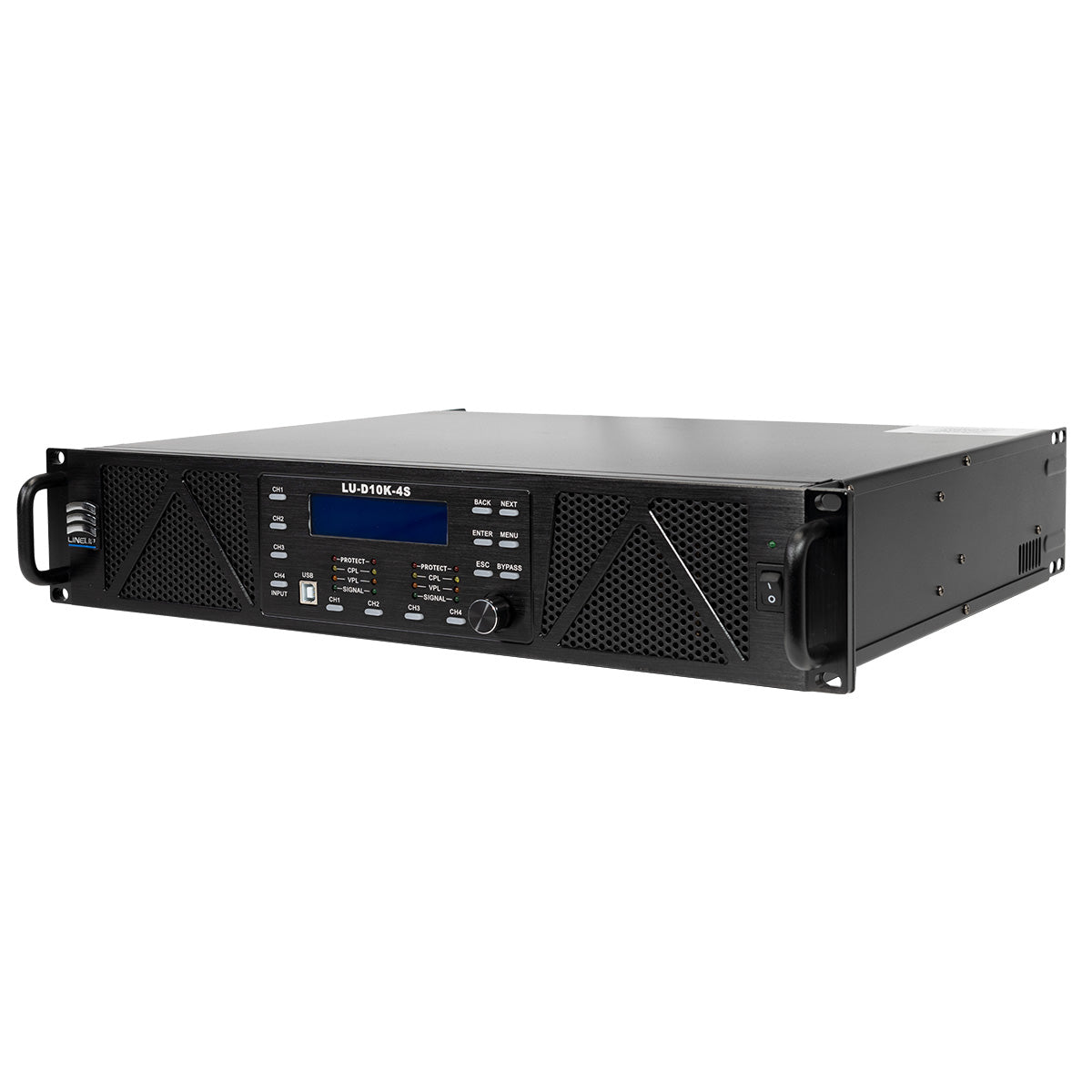

• Intuitive front-panel controls: Channel select, volume knobs, LED metering, navigation buttons, power button, and LED indicator.
• Input and output: XLR & Speakon Connectors (NEUTRIK).
• Ethernet connectivity: Create a local network to control and monitor multiple amplifiers from a single computer.
• Exceptional audio quality: Frequency response of ±0.25dB and distortion of less than 0.01% for pristine sound.

Unprecedented Network Control and Flexibility:

The Lineup D10K-4S goes beyond traditional amplifiers with its versatile digital connectivity options:

• USB: Connect directly to your laptop for convenient configuration and control.
• RS485: Establish wired connections for multi-amplifier installations over longer distances.
• Ethernet: Unlock the true power of network control. Connect your laptop to a Wi-Fi network and control up to 265 D10K-4S Power Amplifier simultaneously, eliminating the need for individual adjustments, ideal for large venues, distributed audio systems, and complex setups.

With this comprehensive connectivity suite, the Lineup D10K-4S Amplifier offers:

• Centralized control: Manage and monitor multiple amplifiers effortlessly from a single user interface.
• Scalability: Adapt your system to any size or configuration with ease.
• Remote access: Control your sound system conveniently, even from different locations within the network.

The Lineup D10K-4S Amplifier is the perfect choice for:

• Musicians and DJs
• Audio installers
• Live event organizers
• Venues and houses of worship
• Anyone who demands superior sound quality and ultimate control.

Whether you’re powering live music events, conferences, installations, or any other professional audio application, the Lineup D10K-4S Power Amplifier delivers the power, precision, and control you need to achieve exceptional sound.

Specifications:

DSP

• Input: 4 Channels
• Output: 4 Channels
• PC Com Port: 1 USB Com Port on front panel, 1 USB Com Port on the back panel, 2 RS485 Com Ports and 1 Ethernet Network connection RJ-45
• Processor: 48KHz Sampling frequency, 48-bit Fixed-Point DSP, 24-bit A/D and D/A converter
• Dynamic range: >110dB
• Frequency Response: ±0.25dB, 20Hz — 20KHz
• Distortion: < 0.01%, 20Hz – 20KHz @ +10dBu balanced input
• Signal to noise ratio: >110dB
• Crossover filter: Each output channel can be independently set as LPF, HPF and APF. The parameters can be adjusted. Filter type: Butterworth, Bessel, Linkwitz-Riley. The Crossover Frequency: 20Hz – 20KHz, Slope: 12, 18, 24 or 48 dB/octave
• EQ: Bandwidth: 0.2 to 36 oct, Frequency: 20Hz – 20KHz, Gain: -24dB to +12dB, step:0.2 dB
• Delay: 0ms to 115ms
• Store Settings: 20 user programs dynamic storage

Amplifier

• Output Power
  • 8Ω Stereo Power 4 × 1350 Watts
  • 4Ω Stereo Power 4 × 2200 Watts
  • 2Ω Stereo Power 4 × 2500 Watts
  • 8Ω Bridge Mono Power 2 × 4400 Watts
  • 4Ω Bridge Mono Power 2 × 5000 Watts
• Frequency Response: 20Hz – 20kHz ±0.5dB
• THD+N (Rated power, 4Ω/KHz)%: 0.10%
• Signal Noise Ratio (dB): 110dB
• Input Impedance: 20KΩ Balanced / 10kΩ Unbalanced
• Output Connectors: Speakon Connectors (NEUTRIK)
• Power Source: 100-120VAC 50-60Hz

Dimension (WxHxD): 19”x3.5”x14.7” (483x88x377 mm)
Weight: 28.7 lbs (13 Kg)
